Fully Automatic CNC Bending Center Pressure Arm Flexible Bending Center
High-precision bending machine designed for processing 3.0mm steel metal in sheet metal fabrication applications for electrical cabinets and metal doors.
Key Features
- Pressure arm feeding system for high versatility

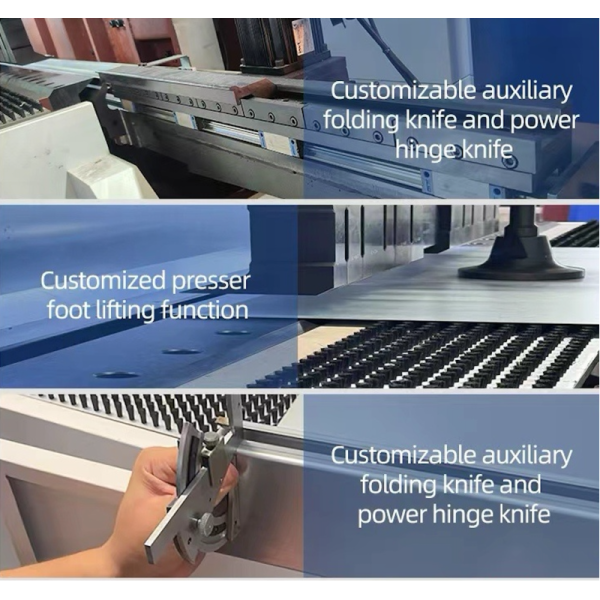

- Customizable auxiliary folding knife and power hinge knife
- Customized processing of workpiece bending height
- Customized presser foot lifting function

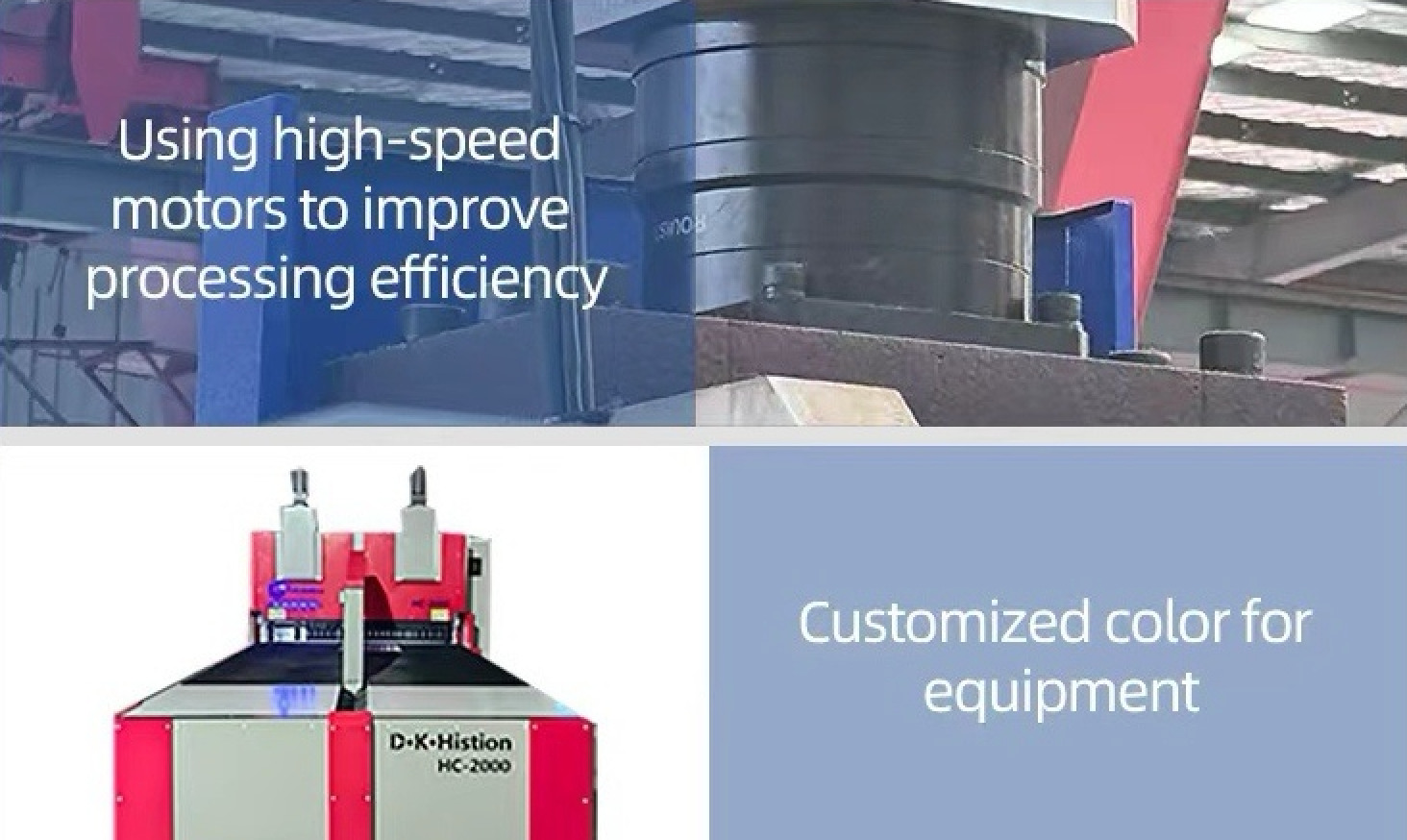

- High-speed motors for improved processing efficiency
Technical Specifications
| Parameter |
HC-2500 |
HC-2500P |
| Feeding structure |
Pressure arm type |
Pressure arm type |
| Minimum internal dimensions for quadrilateral forming |
180mm × 280mm |
180mm × 280mm |
| Bending height |
170mm (customizable) |
170mm (customizable) |
| Average power |
About 2.9KW |
About 3.5KW |
| User operating environment |
Operation system above Win7 |
Operation system above Win7 |
| Maximum bending thickness (Cold plate) |
1.5mm |
2.0mm |
| Maximum bending thickness (304 stainless steel) |
1.0mm |
1.5mm |
| Number of axles |
13 |
13 |
Industrial Applications
This bending machine is suitable for precision electronics, communication equipment, instruments and meters, home appliance components, kitchen equipment manufacturing, and medical devices. It specializes in small part high-precision thin plate bending with high surface quality requirements.
Advanced Control System
The bending center control system employs a top-level computer numerical control (CNC) system integrated with motion control cards. The CNC system features an intuitive human-machine interface and supports graphical programming. With exceptional position calculation capabilities, it significantly enhances production efficiency and precision in automated manufacturing. The motion control cards support 24-axis operation, with an expandable capacity up to 64 axes, and utilize EtherCAT bus control for high-precision motion control.

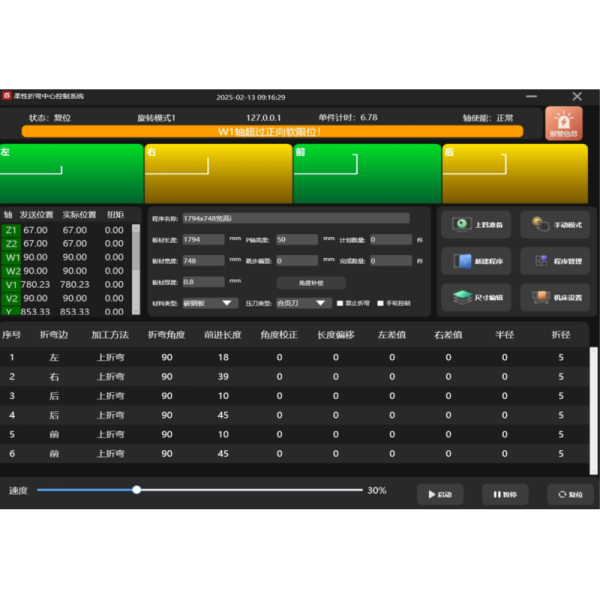

User-Friendly Operation Interface
The interface is simple, easy to learn, with good human-computer interaction designed for efficient operation.
Frequently Asked Questions
Can you arrange samples for me?
Of course, we provide free samples by customer's requirements.
What is the warranty period for the machine?
The warranty period for the machine is one year. Lifetime maintenance and upgrade services are provided after the warranty period.
What is the MOQ of the machine?
The MOQ is 1 set.
Are all the machines standard?
No, customization is available. We can manufacture non-standard machines by customer's requirements.
What products do your machines can do?
Applications include: File cabinetry, Aluminum veneer wall industry, Stainless steel kitchenware industry, Refrigeration equipment industry, Chassis and Cabinet industry, Laboratory construction industry, Metal door industry and more.
What types of sheet materials can your machine bend?
Normally, carbon sheet, aluminum sheet, stainless sheet and galvanized sheet are available.
